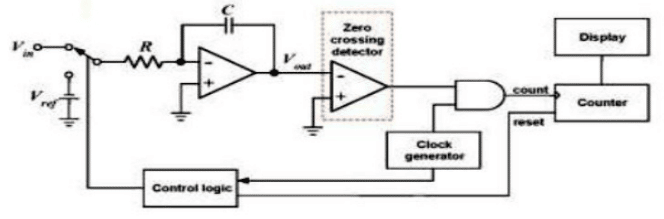

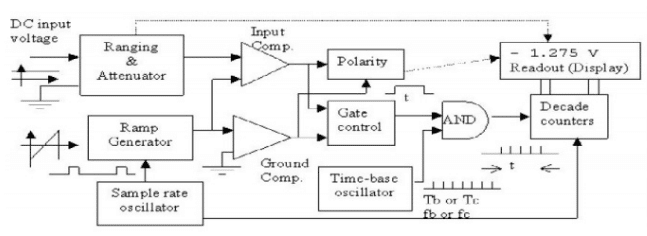

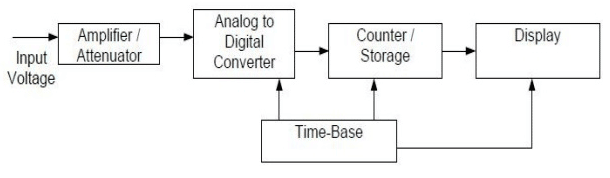

Voltmeter Question & Answers August 11, 2022 By WatElectronics This article lists 100 Voltmeter MCQs for Engineering Students. The Voltmeter Questions & Answers below include solutions and links to the relevant topic. This is helpful for users who are preparing for their exams and interviews, or professionals who would like to brush up on the fundamentals of the Voltmeter. The PMMC instrument, electrodynamic, moving iron measures current directly. If we apply a current across the coils of these meters, the pointer is deflected and the electrostatic instrument measures voltage. So, particularly the electrostatic instruments cannot be used for a direct current measurement directly because it is made up of a set of two parallel plates. The voltmeter is to be connected in parallel in the circuit and the voltmeter potential difference is measured in volts. The symbolic representation of the voltmeter is V, and the effective resistance of the voltmeter is high compared to the ammeter. The ramp type, integrating DVM, continuous balance DVM, and successive approximation are the types of digital voltmeters. The digital voltmeters can measure digitally instead of analog readings and they can measure dc or ac currents and voltages. There are two types of voltmeters are there like analog and digital voltmeters. The digital voltmeters can be programmed but the analog voltmeters are cannot be programmed. The number of measurement ranges is more, and the speed of operation is more in digital voltmeters when compared to analog voltmeters. 1). Which one of the following is a type of analog voltmeter? Moving coil instruments VTVMs Both a and b None of the above None Hint 2). The dynamometer is one type of ______________ instrument? Moving coil Moving iron Both a and b None of the above None Hint 3). In which one of the following instruments, the method of control is hairsprings? Moving coil Moving iron Moving coil rectifier All of the above None Hint 4). What is the standard from of VTV? Vacuum Tube Voltmeter Voltage Tube Voltmeter Vacuum Tube Voltage None of the above None Hint 5). The instrument faulty is an example for _______ error? Gross Random Systematic None of the above None Hint 6). What are the disadvantages of PMMC voltmeter? Not applicable for AC measurements Expensive No hysteresis loss Both a and b None Hint Read more about PMMC Instrument 7). Which one of the following components in electrodynamometer type voltmeter has an air core? Fixed coil Moving coil Springs All of the above None Hint 8). The electronic voltmeters are categorized into _____________ types? One Two Three Four None Hint 9). Which one of the following effects is used for voltmeters only? Magnetic Heating Electrostatic None of the above None Hint 10). The figure shown below is a block diagram of alternating current voltmeter using _________________? Half wave rectifier Full wave rectifier DC Voltmeter None of the above None Hint 11). Which one of the following is a active type instrument? Thermocouple Glass thermometer Sensors Pressure sensor None Hint 12). Which one of the following is an example for null type instrumentation? Wheat stones bridge DC potentiometer Both a and b None of the above None Hint 13). In which one of the following errors, the magnitude is small? Determinate error Indeterminate error Both a and b None of the above None Hint 14). The error that cannot be corrected is known as ________ error? Determinate error Indeterminate error Both a and b None of the above None Hint 15). The figure shown below is a circuit diagram of alternating current voltmeter using _________________? Half wave rectifier Full wave rectifier DC Voltmeter None of the above None Hint 16). What is the standard form of TVM? Transistor Voltmeter Transformer Voltage Transformer Volt None of the above None Hint 17). How many type of CRO probes are there? One Two Three Four None Hint 18). What are the advantages of PMMC voltmeter? Not applicable for AC measurements Expensive No hysteresis loss All of the above None Hint 19). Which one of the following components in electrodynamometer type voltmeter provides the controlling torque? Fixed coil Moving coil Springs All of the above None Hint 20). Which one of the following instruments is suitable for measuring alternating current and voltage? Moving coil Moving iron Moving coil rectifier None of the above None Hint 21). What are the advantages of electronic voltmeter? Low power consumption High frequency range Detection of low-level signals All of the above None Hint 22). What is the standard form of VOM? Voltmeter Ohm Millimetre Voltage Ohm Millimetre Volt Ohm Milliammeter None of the above None Hint 23). An induction type voltmeter are categorized into _______ types? Two Three Four Five None Hint 24). How many electromagnets does an induction type voltmeter consists of? Two Three Four Five None Hint 25). The figure shown below is a block diagram of alternating current voltmeter using _________________? Half wave rectifier Full wave rectifier DC Voltmeter None of the above None Hint Voltmeter MCQs for Students 26). Which one of the following is also known as determinate error? Gross Random Systematic None of the above None Hint 27). What is the standard form of FETVM? Filed Effect Transistor Voltmeter Filed Effect Transformer Voltage Filed Effect Transformer Volt None of the above None Hint 28). Which one of the following errors is reproducible? Determinate error Indeterminate error Both a and b None of the above None Hint 29). How many kinds of direct current voltmeters are there? One Three Four Two None Hint 30). Which one of the following instruments is suitable for measuring direct and voltage? Moving coil Moving iron Moving coil rectifier None of the above None Hint 31). What is the standard from of EVM? Electronic Voltmeter Electrical Voltmeter Electronic Voltage None of the above None Hint 32). The fluctuation in power supply is an example for _________________ error? Method Personal Instrument None of the above None Hint 33). Which one of the following is an example for transmitting type instrumentation? Wheat stones bridge PMMC ammeter Thermocouple LVDT None Hint 34). The systematic errors are categorized into _____________ types? Two Three Four Five None Hint 35). The figure shown below is a circuit diagram of alternating current voltmeter using _________________? Half wave rectifier Full wave rectifier DC Voltmeter None of the above None Hint 36). The insensitivity to colour changes is an example for ______________ error? Method Personal Instrument None of the above None Hint 37). The physical and chemical variables is an example for ________________ error? Gross Random Systematic None of the above None Hint 38). Which one of the following is a passive type instrument? Thermocouple Displacement sensor Liquid level indicator Pressure sensor None Hint 39). Which one of the following is an example for deflection type instrumentation? Wheat stones bridge PMMC ammeter Both a and b None of the above None Hint 40). The figure shown below is a circuit diagram of _________________? Half wave rectifier Full wave rectifier Peak responding Voltmeter None of the above None Hint 41). In which one of the following errors, the magnitude is large? Determinate error Indeterminate error Both a and b None of the above None Hint 42). Which one of the following is an example for monitoring type instrumentation? Wheat stones bridge PMMC ammeter Both a and b LVDT None Hint 43). The physical and chemical variables are an example of ____________ error? Gross Random Systematic None of the above None Hint 44). Which one of the following errors is not reproducible? Determinate error Indeterminate error Both a and b None of the above None Hint 45). What are the advantages of electrostatic voltmeter? Low loading effect Active power losses are negligibly Both a and b None of the above None Hint 46). What are the advantages of voltage transformer? Easy installation Simple design Both a and b None of the above None Hint 47). What are the advantages of digital voltmeter? Increases the parallax errors Automated polarity Both a and b None of the above None Hint Read more about Digital Voltmeter 48). How many type of AC voltmeters are there? Two Three Four Five None Hint 49). What are the advantages of average reading AC voltmeter? Simple construction Low input impedance High power consumption All of the above None Hint 50). How many types of digital voltmeters are there? One Two Three Four None Hint Voltmeter Important MCQs for Exams 51). The figure shown below is a block diagram of ________________ digital voltmeter? Ramp type Electrodynamic PMMC None of the above None Hint 52). Which one of the following instruments is suitable for measuring direct & alternating current and voltage? Moving coil Moving iron Moving coil rectifier None of the above None Hint 53). The rectifiers based on voltmeters are categorized into ______________ types? Two Three Four Five None Hint 54). The error that can be corrected is known as ______________ error? Determinate error Indeterminate error Both a and b None of the above None Hint 55). The AC voltmeters are categorized into _______________ types? Two Three Four Five None Hint 56). How many types of wave analysers are there? Two Three Four Five None Hint 57). The cathode ray oscilloscope is used to measure the ________________? Time period Amplitude Frequency All of the above None Hint 58). How many type of spectrum analysers are there? Two Three Four Five None Hint 59). The figure shown below is a circuit diagram of _________________? Half wave rectifier True RMS responding voltmeter Peak responding Voltmeter None of the above None Hint 60). Which one of the following cannot be used to measure transistor? Mustimeter Voltmeter Both a and b None of the above None Hint 61). In which one of the following meters there is no zero ohm? VOM DMM Both a and b None of the above None Hint 62). Which one of the following voltmeters are cannot be programmed? Analog voltameters Digital voltmeters Both a and b None of the above None Hint 63). Which one of the following is based on null deflection method? Potentiometer Voltmeter Both a and b None of the above None Hint 64). Which one of the following instruments is closed and fixation? Visual Conventional Both a and b None of the above None Hint 65). In which one of the following, the measurement can be accurate but not necessarily precise? Accuracy Precision Both a and b None of the above None Hint 66). Which one of the following needs several measurements to be determined? Accuracy Precision Both a and b None of the above None Hint 67). Which one of the following may be affected with systematic error? Accuracy Precision Both a and b None of the above None Hint 68). The degree of closeness to true value is known as __________________? Accuracy Precision Both a and b None of the above None Hint 69). Which one of the following meters doesn’t measure emf of a cell very accurately? Potentiometer Voltmeter Both a and b None of the above None Hint 70). The figure shown below is a circuit diagram of ____________________ voltmeter? Transformer AC voltmeter DC Voltmeter None of the above None Hint 71). The possibility of human error doesn’t exists in _____________ type of instrument? Analog Digital Both a and b None of the ab None Hint 72). Which one of the following instruments is portable? Analog Digital Both a and b None of the above None Hint 73). In which one of the following instrument, the auxiliary source of power is not required? Analog Digital Both a and b None of the above None Hint 74). Which one of the following instrument resolutions is more? Analog Digital Both a and b None of the above None Hint 75). In which one of the following instruments, the accuracy is less? Analog Digital Both a and b None of the above None Hint Voltmeter Important MCQs for Quiz 76). Which one of the following instruments is expensive? Analog Digital Both a and b None of the above None Hint 77). Which one of the following represents the correctness of the measurement? Accuracy Precision Both a and b None of the above None Hint 78). The voltmeters that can be programmed are known as ______________ voltmeters? Analog voltmeters Digital voltmeters Both a and b None of the above None Hint 79). Which one of the following can be used to test diodes? Multi-meter Voltmeter Both a and b None of the above None Hint 80). The figure shown below is a circuit diagram of ____________________ voltmeter? Multirange DC voltmeter Multirange AC voltmeter DC Voltmeter None of the above None Hint 81). In which one of the following voltmeters, the digitization of signal is not required? Analog voltmeters Digital voltmeters Both a and b None of the above None Hint 82). Which one of the following voltmeters has poor resolution? Analog voltmeters Digital voltmeters Both a and b None of the above None Hint 83). Which one of the following represents the agreement between two or more measured values? Accuracy Precision Both a and b None of the above None Hint 84). Which one of the following cannot be improved? Accuracy Precision Both a and b None of the above None Hint 85). The figure shown below is a block diagram of ____________________ voltmeter? Multirange DC voltmeter DVM DC Voltmeter None of the above None Hint 86). In which one of the following the scope of applications is vast? Multimeter Voltmeter Both a and b None of the above None Hint 87). In which one of the following voltmeters, the number of measurement range is more? Analog voltmeters Digital voltmeters Both a and b None of the above None Hint 88). The ramp type of DVM block diagrams divided into _______________ sections? One Two Three Four None Hint 89). Which one of the following is correct? DVM can measure dc or ac currents and voltages DVM cannot measure digitally instead of analog readings Both a and b None of the above None Hint 90). The figure shown below is a block diagram of ____________________ voltmeter? Dual slope integrating type DVM Ramp type DVM DC Voltmeter None of the above None Hint 91). The possibility of human error exists in _____________ type of instrument? Analog Digital Both a and b None of the above None Hint 92). Which one of the following instruments is stationary type? Analog Digital Both a and b None of the above None Hint 93). In which one of the following instruments, the auxiliary source of power is required? Analog Digital Both a and b None of the above None Hint 94). Which one of the following is not correct? DVM can measure dc or ac currents and voltages DVM cannot measure digitally instead of analog readings DVM can reduce the human mistakes None of the above None Hint 95). The figure shown below is a block diagram of ____________________ voltmeter? Dual slope integrating type DVM Ramp type DVM DC Voltmeter None of the above None Hint 96). In which one of the following, the scope of applications is relatively less? Multi-meter Voltmeter Both a and b None of the above None Hint 97). What are the features of digital voltmeters? Low cost Easy construction Small size All of the above None Hint 98). In which one of the following meters for each range the zero-ohm adjustment changed? VOM DMM Both a and b None of the above None Hint 99). In which one of the following voltmeters, the sensitivity is more? Analog voltmeters Digital voltmeters Both a and b None of the above None Hint 100). In which one of the following voltmeters, the digitization of signal is required? Analog voltmeters Digital voltmeters Both a and b None of the above None Hint For More MCQs Multimeter Question and Answers. Galvanometer Question and Answers. Please fill in the comment box below. Time's up
