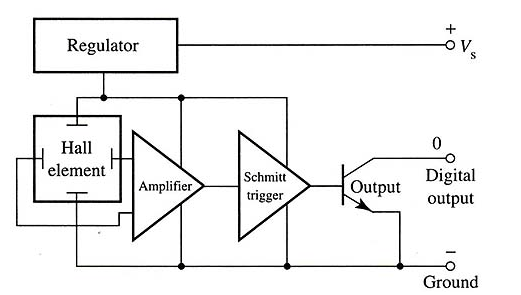

Hall Effect Question & AnswersApril 1, 2022 By WatElectronics This article lists 100 Hall Effect MCQs for Engineering Students. All the Hall Effect Questions & Answers given below includes solution and link wherever possible to the relevant topic. This is helpful for users who are preparing for their exams, interviews, or professionals who would like to brush up their fundamentals on the hall effect.The Hall Effect is the most common method of measuring a magnetic field. The hall effects sensors are very popular and have many contemporary applications for example they can be found in vehicles as wheel speed sensors, camshaft position sensors, switches, MEMS, proximity sensors, compasses, and so on. The element of the Hall effect magnetic sensors provides very small voltage, therefore these devices are usually manufactured with built-in high gain amplifiers. The hall effect sensors are less expensive, operates in different temperature range, and are reliable.There are two types of hall effect sensors, one provides analog and the other is a digital output. The hall effect principle is used in magnetic field sensing equipment, proximity detectors, multiplier applications to provide the actual multiplications, etc The high-speed operation type and low current consumption type are the two types of Hall effect ICs. The hall effect sensors are highly reliable, offer high-speed operation, offer pre-programmable electrical angles & output, and are the ability to work in a wide temperature range.1). Which one of the following blocks detects a magnetic field? Hall element Chopper amplifier Sleep/awake circuit Inverter HintThe chopper amplifier, hall element, sleep or awake circuit, are the blocks of hall effect IC configuration2). What is the standard form of QSHE? Quality Spin Hall Effect Quantum Soft Hall Effect Quantum Spin Hall Effect None of the above HintThe QSHE is one type of spin hall effect which was discovered in 20073). Which one of the following is an application for a hall effect sensor? Position sensing DC transformer Automatic fuel level indicator All of the above HintThe hall effect sensors used in fuel indicators, transformers, in brushless direct current motors, etc4). Which one of the following is a correct equation for hall voltage? Vh=Rh(1/t * B) Vh=Rh(t * B) Vh=1/t * B None of the above And HintThe Vh is the hall voltage, Rh is the hall effect coefficient, and t is the sensor thickness5). The transducer that is used for measuring the magnetic flux density is _____________ transducer? LVDT Hall effect transducer Both a and b None of the above HintThe transducer that is used for measuring the magnetic flux density is hall effect transducer6). The hall effect transducer measures the _____________ ? Displacement Current Both a and b None of the above HintThe hall effect transducer works on the hall effect principle7). How many pins does the DRV5055-Q1 hall effect sensor have? One Two Three Four HintThe Vcc, out, and ground are the three pins of the DRV5055-Q1 hall effect sensor Read more about Sensors8). What is the standard form QAHE? Quality Anomalous Hall Effect Quantum Anomalous Hall Effect Quantum Angle Hall Effect None of the above HintThe QAHE is one type of anomalous Hall effect which was discovered in 20139). The DRV5055-Q1 hall effect sensor operates from _______________ volts? 3.3 to 5 volts 150 volts 100 volts 120 volts HintThe DRV5055-Q1 hall effect sensor measures the magnetic flux density10). Which one of the following hall effects IC used to obtain an output voltage? Switching type Linear output type Both a and b None of the above HintThe switching type hall effect IC used to obtain off/on Signal11). What is the standard form of FQHE? Fractional Quantum Hall Effect Fractional Orthogonal Hall Effect Fixed Quantum Hall Effect None of the above HintThe FQHE is one type of quantum effect which was discovered in 198212). What is the standard form of DMC? Dynamic Magneto Conductivity DC Magneto Conductivity Digital Magneto Conductivity None of the above HintThe DMC is one type of hall effect analytical model13). The figure shown below is an electronic block diagram of a _______________ sensor? Temperature Hall effect Piezo None of the above HintIn analog signal applications the hall effect sensors are useful14). The maximum current output of DRV5055 hall effect sensor is around ________________ amperes? 10 mA 1 mA 2 mA 5 mA HintThe DRV5055 is one type of hall effect sensor15). Which one of the following hall effect IC used to obtain an off/on Signal? Switching type Linear output type Both a and b None of the above HintThe linear output type hall effect IC used to obtain an output voltageHall Effect MCQs for Quiz16). The hall effect IC detections are categorized into _______________ types? One Two Three Four HintThe hall effect integrated circuits detects the magnetic field17). The DRV5055 hall effect sensor is used in _________________ ? Home appliances Industrial automation Robotics All of the above HintIt is also used in medical devices, fluid flow rate measurement, etc18). The figure shown below is a circuit diagram of a __________________? Clamp Meter Circuit Hall effect sensor switch Hall effect sensor Alarm Circuit None of the above HintThe hall effect sensors can also be used to measure the high currents19). What is the standard form of PIHE? Photo Inductor Hall Effect Photo Insulator Hall Effect Photo Induced Hall Effect None of the above HintThe PIHE is one type of induced hall effect which was discovered in 201820). The maximum current supply of DRV5055 hall effect sensor is around ________________ amperes? 10 mA 1 mA 2 mA 5 mA HintThe DRV5055 is one type of hall effect sensor used to measure magnetic field density21). What is the standard form of AHE? Anomalous Hall Effect Array Hall Effect Angle Hall Effect None of the above HintThe AHE is one type of hall effect which was discovered in 188122). Which one of the following is a correct equation for the Hall coefficient? Vh=Rh(1/t * B) Rh=(t * B) Rh=(Vt/IB) None of the above HintThe Vh is the hall voltage, Rh is the hall effect coefficient, and t is the sensor thickness23). The type of detections by hall effect are categorized into ________________ types? One Two Three Four HintThe head-on detection configuration, sideway detection configuration, and position detection are types of detections by hall effect24). Which one of the following is a correct equation for hall potential? V=IBL/neA Rh=(t * B) Rh=(Vt/IB) None of the above HintThe V is the hall potential, it is measured with a voltmeter25). What is the standard form of VHE? Value Hall Effect Valve Hall Effect Valley Hall Effect None of the above HintThe VHE is one type of hall effect which was discovered in 201426). Which one of the following is a hall voltage expression in terms of a magnetic field? V=IBL/neA V=BlVd Rh=(Vt/IB) None of the above HintThe V is the hall potential, it is measured with a voltmeter27). The hall voltage typical value is around ________________ volts? Few milivolts Few nanovolts Kilo volts None of the above HintThe hall voltage typical value is around a few milli volts28). Which one of the following is a parameter of hall effect? Carrier concentration Carrier mobility Hall coefficient All of the above HintThe Magnetoresistance, resistivity, carrier conductivity are also parameters of hall effect29). What is the standard form of DTFE? Dynamic Tensor for Free e-Model DC Tensor for Free e-Model Dielectric Tensor for Free e-Model None of the above HintThe DTFE is one type of hall effect analytical model30). The hall effect ICs are categorized into _______________ types? One Two Three Four HintThe switching type and linear output type are the two types of hall effect IC'sHall Effect MCQs for Exams31). What is the standard form of SHE? Spin Hall Effect Soft Hall Effect String Hall Effect None of the above HintThe SHE is one type of hall effect which was discovered in 197132). What is the name of the below figure? Hall effect distributor Hall effect Diagram Hall effect sensor None of the above HintThe Hall Effect is the most common method of measuring a magnetic field33). Which one of the following can be measured by hall effect sensors? Speed Position Proximity All of the above HintThis sensor can also be used to measure alternate and direct currents34). The DRV5055 is one type of ______________ hall position sensor? Unipolar Bipolar Both a and b None of the above HintThe DRV5055 is one type of linear hall effect sensor35). What is the standard form of DCMR? Dynamic Magneto Resistor DC Magneto Resistance Digital Magneto Repeater None of the above HintThe DCMR is one type of hall effect analytical model36). When was the planar hall effect was invented? 2000 1999 1940 1968 HintThe planar hall effect was invented in 196837). Which one of the following hall effect parameters is represented by n? Carrier concentration Carrier mobility Hall coefficient All of the above HintThe carrier concentration is also known as charge carrier density38). The figure shown below is a electronic block diagram of a _______________ sensor? Temperature Hall effect Piezo None of the above HintThe above circuit is used in current sourcing circuits39). How many meters does the hall proximity sensor can detect the distance? 1 cm 2 cm 3 cm 0 to 4 cm HintIn terms of millimeter the hall proximity detects the distance up to 40mm40). The bandwidth range of DRV5055 linear hall effect sensor is around ________________ hertz? 10KHz 20KHz 2KHz 1KHz HintThe DRV5055 is one type of hall effect sensor, its BW range is about 20KHzHall Effect MCQs for Interviews41). What is the standard form of IQHE? Integrated Original Hall Effect Integer Quantum Hall Effect Internal Ordinary Hall Effect None of the above HintThe IQHE is one type of quantum hall effect which was discovered in 198042). Which one of the following hall effect parameters is represented by Rh? Carrier concentration Carrier mobility Hall coefficient All of the above HintThe unit of hall coefficient is SI and hybrid units43). What is the unit of temperature? Kelvin Volts Ohms None of the above HintThe symbol of temperature is T and its unit is Kelvin44). What is the unit of current density? Kelvin Volts Ohms A/cm^2 HintThe J is the symbol for current density and its unit is A/cm^245). What is the standard form of ZCL? Zero Crossing Line Zero Crossing Latch Zero Common Line None of the above HintThe ZCL is one type of hall effect IC detection46). The ratio of electric field due to hall effect divided by product of magnetic field and current density is known as ________________ ? Hall voltage Hall coefficient Mobility None of the above HintThe ratio of electric field due to hall effect divided by-product of magnetic field and current density is known as hall coefficient47). What is the standard form of OHE? Original Hall Effect Orthogonal Hall Effect Ordinary Hall Effect None of the above HintThe OHE is one type of hall effect which was discovered in 187948). The figure shown below is a circuit diagram of a __________________? Hall effect sensor alarm Hall effect sensor switch Clamp meter circuit None of the above HintThe hall effect sensors can also be used to measure the high currents49). The temperature range of MLX92211 hall effect latch integrated circuit is from _____________ degree celsius? 10 to 20 20 to 30 30 to 40 -40 to 150 HintThe hall effect latch IC MLX92211 is a second-generation IC50). What is the standard form of ISHE? Integral Spin Hall Effect Integer Soft Hall Effect Inverse Spin Hall Effect None of the above HintThe ISHE is one type of spin hall effect which was discovered in 1984 Read more about the Hall effect Please fill in the comment box below. Time is Up! Time's up
