PID Controller Question & Answers

May 30, 2022 By WatElectronics

This article lists 75 PID Controller MCQs for Engineering Students. All the PID Controller Questions & Answers given below include solutions and links to the relevant topic. This is helpful for users who are preparing for their exams and interviews, or professionals who would like to brush up on the fundamentals of the PID controller.

The controllers are a very important component in a control system, which are usually used to control the steady-state error or transient response of the system. The proportional, proportional-integral, proportional integral derivative, and proportional derivate are the types of controllers.

The P controller is a proportional controller, it is a device that produces an output that is proportional to the input signal. The proportional controller improves the steady-state error and also the stability of the system. It decreases the sensitivity of the system to parameter variations. The main disadvantage of a proportional controller is that it provides a constant steady-state error.

The PI controller is a proportional-integral controller, it is a device that produces an output signal that consists of two terms one is proportional to the input system and the other one is proportional to the integral of the system.

The PID controller is a proportional integral derivative system, this controller is very effective for slower processes. The response is faster in the PID controller compared to the PI controller. In PID controller some amount of overshoot may occur but in PI the overshoot doesn't occur.

1). The function of the proportional mode is to ____________?

Hint
2). In which one of the following controllers, the performance will improve with time?

Hint
3). In which one of the following controllers the rate of recovery is poor?

Hint
4). Which one of the following constants is represented by Kp?

Hint
5). The function of the proportional plus integral mode is to ____________?

Hint
6). The PID controller is very effective for _____________ processes?

Hint
7). In which one of the following controllers some amount of overshoot may occur?

Hint
8). What is the standard form of PID controller?

Hint
Read more about PID Controller
9). In which one of the following controllers, the response is fast?

Hint
10). Which one of the following controllers improves steady state error and also stability of the system?

Hint
11). which one of the following controllers increases the order of the system by one?

Hint
12). The function of the proportional plus derivative mode is to ____________?

Hint
13). In ___________ controller device, the output signal is proportional to input signal?

Hint
14). What is the disadvantage of proportional controller?

Hint
15). What is the disadvantage of proportional integral controller?

Hint
16). In ___________ controller device, the output signal is proportional to input signal and derivative of input signal?

Hint
17). Which one of the following controllers increases the damping ratio of the system?

Hint
18). Which one of the following controllers produces the output in three terms?

Hint
19). The figure shown below is a circuit diagram of ___________ controller?

Closed Loop Control System With a Proportional Controller

Hint
20). Which one of the following controllers used for very noisy systems?

Hint
21). The difference between the set points and the measured signal is known as ______________?

Hint
22). The ratio of the change in output to the change in input is known as ___________?

Hint
23). The constant used in the integral action equation is known as _____________ ?

Hint
24). The differential change in error used in the derivative action equation is known as _____________?

Hint
25). The advantage of proportional controller is ___________?

Hint

PID Controller MCQs for Interviews

26). What are the advantages of integral controller?

Hint
27). The function of the proportional integral derivative mode is to ____________ ?

Hint
28). Which one of the following controllers is very effective for faster processes?

Hint
29). The overshoot doesn't occur in ____________ type of controller?

Hint
30). Which one of the following controllers reduces the steady state error?

Hint
31). In ___________ controller device, the output signal is proportional to input signal and also integral to input signal?

Hint
32). The figure shown below is a circuit diagram of ___________ controller?

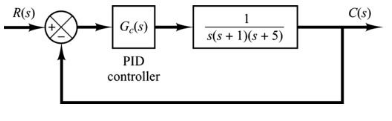

PID Controlled System

Hint
33). The pressure control, flow control are the examples of ______________ controller?

Hint
34). The maximum response time interval of classical feedback PID controller is _____________ ?

Hint
35). Which one of the following controllers is a type of classical feedback control?

Hint
36). What is the advantage of proportional controller?

Hint
37). The rate of recovery is very fast in _______________ controller?

Hint
38). In which one of the following controllers, the response is slow?

Hint
39). Which one of the following controls multiple outputs and multiple inputs?

Hint
40). The bread toaster is an example for _____________ loop control system?

Hint
41). A system with more than one output variable or more than one input variable is known as __________ system?

Hint
42). The output values are added in _______________ control system?

Hint
43). What is the standard form of ISE?

Hint
44). In proportional integral controller ________________ parameters will decrease?

Hint
45). Which one of the following controllers is a type of analog controller?

Hint
46). The figure shown below is a block diagram of ______________ control structure?

Block Diagram of Control System

Block Diagram of Control System

Hint
47). The feedforward control is used only if the accuracy of measurement is __________ ?

Hint
48). Which one of the following parameters will increase in proportional integral controller?

Hint
49). The maximum response time interval of demand-based controller is _____________ ?

Hint
50). The thermostats, float values, humidistat, etc are the examples of ____________ controller?

Hint

PID Controller MCQs for Exams

51). The controller output when the error is equal to zero is known as ______________?

Hint
52). What is the standard form of ITAE?

Hint
53). If the parameter integral gain increases, then the accuracy ______________ ?

Hint
54). what is the advantage of derivative controller?

Hint
55). Which one of the following control is a type of relational controls?

Hint
56). In which one of the following control system, the output values are subtracted?

Hint
57). The constant used in the derivative action equation is known as _____________?

Hint
58). The figure shown below is a block diagram of ______________ controller?

Two SISO PID Loops

Hint
59). What is the standard form of ITSE?

Hint
60). In which one of the following controllers, the performance will not improve with time?

Hint

PID Controller MCQs for Quiz

61). Which one of the following controls have only one output and one input?

Hint
62). What is the standard form of LFT?

Hint
63). The voltage output from the controller usually relating to the actuating signal is known as _________________?

Hint
64). The differential change in time used in the derivative action equation is known as _____________?

Hint
65). Which one of the following is an example for actuators?

Hint
66). The maximum response time interval of intelligent iterative control is _____________?

Hint
67). If the parameter derivative gain increases, then the accuracy ______________?

Hint
68). The figure shown below is a block diagram of ______________ controller?

PD Controller Block Diagram

Hint
69). Which one of the following is an example for control processor?

Hint
70). Which one of the following is an example for sensors?

Hint
Read more about Sensors
71). What is the disadvantage of proportional controller?

Hint
72). The internal model control categorizes into ____________ types?

Hint
73). What is the standard form of IAE?

Hint
74). The figure shown below is a block diagram of ______________ controller?

PI Controller Block Diagram

Hint
75). What is the standard form of IMC?

Hint

Time is Up!
